1. Housing:
Aluminum Alloys
2. Gears:
Hardened Helical Gears
3. Input Configurations:
Hollow Shaft with IEC Normalized Motor Flange
Solid Shaft Input
4. Applicable Motors:
IEC-normalized Motors and Brake Motors
Explosion-proof Motors
Inverter Motors
Servo Motors
5. Output Configurations:
Solid Shaft with B5 Output Flange
Solid Shaft with B14 Output Flange
RC(Foot-mounted): RC01,RC02,RC03,RC04
RCF(B5 Flange-mounted): RCF01,RCF02,RCF03,RCF04
RCZ(B14 Flange-mounted): RCZ01,RCZ02,RCZ03,RCZ04
1. Modular design, dismountable frame foot, optional different frame sizes and flanges
2. Aluminum housing, compact structures, light weight
3. Carburizing and grinding hardened gears, sturdy and durable
4. Multiple mounting positions
5. Low noise
|
Frame Sizes |
Power |
Ratio |
Max. Torque |
|
01,02,03,04 |
0.12kW~4kW |
3.66~54 |
120N.m~500N.m |
Textile, Food, Ceramics, Packaging, Logistics, Plastics Industry

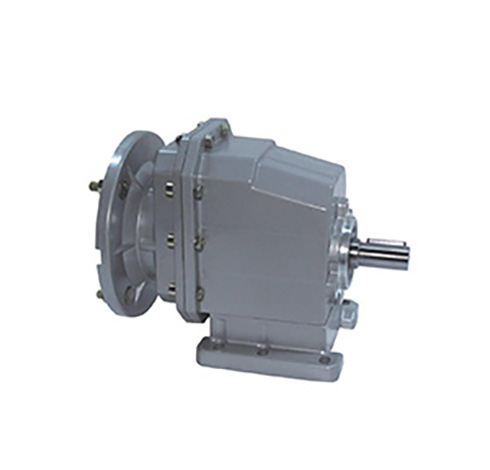

Foot-mounted
B5 Flange-mounted
B14 Flange-mounted
Product Parameters
|
GEARBOX SELECTING TABLES |
|
||||||||
|
KPC01.. |
|
|
|
n1=1400r/min |
|
|
|
120Nm |
|
|
n2 |
M2max |
Fr2 |
i |
Proportion |
63B5 |
71B5/B14 |
80B5/B14 |
90B5/B14 |
|
|
[r/min] |
[Nm] |
[N] |
|
||||||
|
26 |
120 |
2600 |
53.33 |
160/3 |
|
|
|
|
|
|
31 |
120 |
2600 |
45.89 |
413/9 |
|
|
|
|
|
|
35 |
120 |
2600 |
40.10 |
3248/81 |
|
|
|
|
|
|
39 |
120 |
2560 |
35.47 |
532/15 |
|
|
|
|
|
|
49 |
120 |
2380 |
28.50 |
770/27 |
|
|
|
|
|
|
59 |
120 |
2230 |
23.56 |
212/9 |
|
|
|
|
|
|
71 |
120 |
2100 |
19.83 |
119/6 |
|
|
|
|
|
|
78 |
90 |
2030 |
17.86 |
1357/76 |
|
|
|
|
|
|
96 |
120 |
1900 |
14.62 |
658/45 |
|
|
|
|
|
|
101 |
90 |
1860 |
13.80* |
69/5 |
|
|
|
|
|
|
118 |
120 |
1770 |
11.90 |
2464/207 |
|
|
|
|
|
|
143 |
120 |
1660 |
9.81 |
1148/117 |
|
|
|
|
|
|
153 |
80 |
1630 |
9.17 |
1219/133 |
|
|
|
|
|
|
181 |
80 |
1540 |
7.72 |
1173/152 |
|
|
|
|
|
|
246 |
70 |
1390 |
5.69 |
1081/190 |
|
|
|
|
|
|
302 |
70 |
1290 |
4.63 |
88/19 |
|
|
|
|
|
|
366 |
70 |
1210 |
3.82 |
943/247 |
|
|
|
|
|
|
KPC02.. |
|
|
|
n1=1400r/min |
|
|
|
200Nm |
|
|
n2 |
M2max |
Fr2 |
i |
Proportion |
63B5 |
71B5/B14 |
80B5/B14 |
90B5/B14 |
|
|
[r/min] |
[Nm] |
[N] |
|
||||||
|
26 |
200 |
4500 |
54.00* |
54/1 |
|
|
|
|
|
|
30 |
200 |
4500 |
46.46* |
3717/80 |
|
|
|
|
|
|
34 |
200 |
4500 |
40.60* |
203/5 |
|
|
|
|
|
|
39 |
200 |
4270 |
35.91* |
3591/100 |
|
|
|
|
|
|
48 |
200 |
3970 |
28.88* |
231/8 |
|
|
|
|
|
|
59 |
200 |
3730 |
23.85* |
477/20 |
|
|
|
|
|
|
70 |
200 |
3520 |
20.08* |
3213/160 |
|
|
|
|
|
|
82 |
140 |
3330 |
17.10 |
3009/176 |
|
|
|
|
|
|
95 |
200 |
3180 |
14.81* |
2961/200 |
|
|
|
|
|
|
106 |
140 |
3060 |
13.21 |
2907/220 |
|
|
|
|
|
|
116 |
200 |
2970 |
12.05 |
1386/115 |
|
|
|
|
|
|
141 |
200 |
2780 |
9.93 |
2583/260 |
|
|
|
|
|
|
159 |
120 |
2670 |
8.78 |
2703/308 |
|
|
|
|
|
|
189 |
120 |
2520 |
7.39 |
2601/352 |
|
|
|
|
|
|
257 |
100 |
2280 |
5.45 |
2397/440 |
|
|
|
|
|
|
316 |
100 |
2120 |
4.43 |
102/23 |
|
|
|
|
|
|
383 |
80 |
1990 |
3.66 |
2091/572 |
|
|
|
|
|
|
KPC03.. |
|
|
|
n1=1400r/min |
|
|
|
|
300Nm |
|
n2 |
M2max |
Fr2 |
i |
Proportion |
71B5/B14 |
80B5/B14 |
90B5/B14 |
100B5/B14 |
112B5/B14 |
|
[r/min] |
[Nm] |
[N] |
|||||||
|
24 |
300 |
6000 |
58.09 |
639/11 |
|
|
|
|
|
|
28 |
300 |
6000 |
50.02 |
2201/44 |
|
|
|
|
|
|
32 |
300 |
6000 |
43.75 |
4331/99 |
|
|
|
|
|
|
36 |
300 |
6000 |
38.73 |
426/11 |
|
|
|
|
|
|
40 |
300 |
5860 |
34.62 |
4189/121 |
|
|
|
|
|
|
49 |
300 |
5480 |
28.30 |
4047/143 |
|
|
|
|
|
|
64 |
280 |
5020 |
21.78 |
1917/88 |
|
|
|
|
|
|
81 |
280 |
4660 |
17.33 |
3621/209 |
|
|
|
|
|
|
93 |
260 |
4440 |
15.06 |
497/33 |
|
|
|
|
|
|
113 |
260 |
4160 |
12.37 |
1633/132 |
|
|
|
|
|
|
136 |
240 |
3910 |
10.28 |
3053/297 |
|
|
|
|
|
|
177 |
180 |
3590 |
7.93 |
1269/160 |
|
|
|
|
|
|
222 |
180 |
3320 |
6.31 |
2397/380 |
|
|
|
|
|
|
255 |
150 |
3170 |
5.48 |
329/60 |
|
|
|
|
|
|
311 |
150 |
2970 |
4.50 |
1081/240 |
|
|
|
|
|
|
374 |
150 |
2790 |
3.74 |
2021/540 |
|
|
|
|
|
|
KPC04.. |
|
|
|
n1=1400r/min |
|
|
|
500Nm |
|
|
n2 |
M2max |
Fr2 |
i |
Proportion |
80B5/B14 |
90B5/B14 |
100B5/B14 |
112B5/B14 |
|
|
[r/min] |
[Nm] |
[N] |
|||||||
|
24 |
500 |
8000 |
58.09 |
639/11 |
|
|
|
|
|
|
28 |
500 |
8000 |
50.02 |
2201/44 |
|
|
|
|
|
|
32 |
500 |
8000 |
43.75 |
4331/99 |
|
|
|
|
|
|
36 |
500 |
8000 |
38.73 |
426/11 |
|
|
|
|
|
|
40 |
500 |
7950 |
34.62 |
4189/121 |
|
|
|
|
|
|
49 |
500 |
7430 |
28.30 |
4047/143 |
|
|
|
|
|
|
64 |
480 |
6810 |
21.78 |
1917/88 |
|
|
|
|
|
|
81 |
480 |
6310 |
17.33 |
3621/209 |
|
|
|
|
|
|
93 |
460 |
6020 |
15.06 |
497/33 |
|
|
|
|
|
|
113 |
460 |
5640 |
12.37 |
1633/132 |
|
|
|
|
|
|
136 |
440 |
5300 |
10.28 |
3053/297 |
|
|
|
|
|
|
177 |
260 |
4860 |
7.93 |
1269/160 |
|
|
|
|
|
|
222 |
260 |
4510 |
6.31 |
2397/380 |
|
|
|
|
|
|
255 |
230 |
4300 |
5.48 |
329/60 |
|
|
|
|
|
|
311 |
230 |
4030 |
4.50 |
1081/240 |
|
|
|
|
|
|
374 |
200 |
3780 |
3.74 |
2021/540 |
|
|
|
|
|
